vFleXtor® 503.3 - Virtual, Flexible, Execution and Storage environment

Order now:
410.531.6051

Virtual, Flexible, Execution and Storage environment
Proven latest technology with care for the future

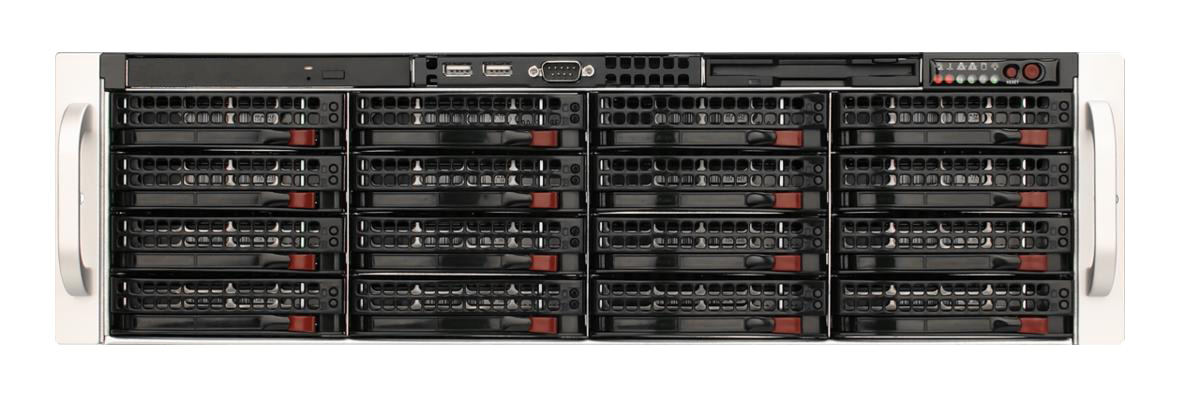

vFleXtor® 503.3 maximizes the storage and computing of a 3U form factor by offering rackmountable solution including 16 hot-swap 3.5" drive bays for extra storage
vFleXtor® is an integrated hardware appliance, which leverages processing power and robust storage, in a dense datacenter layout.
While vFleXtor® computing resources are seamlessly integrated within any existing VMWare ESX4.0 environment the vFleXtor®’s vSphere console still can manage the existing VMWare ESX3.5 nodes.
We offer precise computing resource allocation to the Storage subsystem to ensure maximum utilization and efficiency.

Overview
Tech specs
Service and Support

Unique, flexible and yet easy to maintain storage and computing (two-in-one) platforms

Complete Virtual Flexible Execution and Storage environment solution including:
• vFleXtor® tailored implementation
• Hardware specifications flexibility
• Software options
• vFleXtor® capacity planning and sizing
• vFleXtor® on-site integration and configuration
• Resource efficiency and utilization analysis
• Hardware upgrade path

vFleXtor® 503.3 is a 1 node computing and storage environment with the following specifications:
(download the complete specifications as

)

• High-performing network shared storage using standard iSCSI protocol.
• Future proof scalable storage and computing capacity model
• High density 3U storage optimized chassis
• 16x 3.5" SAS/SATA hot-swappable drive bays (up to 32 TB storage)
• RAID 0, 1, 10, 0+1, 5, 6, 50, 60 supported
• Up to 12 DDR3 DIMMs (up to 48 GB)
• 2x Quad-Core Intel® Xeon® Processor 5500 with QPI up to 6.4 GT/s
• Integrated dual port Gigabit Ethernet adapters
• Support 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• VMDq support for better performance of virtualization
• PCI expansion slot, and optical drive into a single rack unit.
• 1200W high-efficiency (1+1) redundant power supply with PMBus and PFC - Gold Level 93% Maximum Efficiency
• Cooling redundancy
• Power switch, reset switch & 6 LED Indicators
• Integrated IPMI and KVM with dedicated LAN
• Energy-efficient solution ideal for space-constrained, mission-critical deployments.
• Easy to integrate and use in already existing computing environments
• Only high quality components and fans are used for maximum reliability

IT Global Systems offers services to help your organization to precisely identify the computing and storage resources allocation and to ensure maximum utilization and efficiency.

vFleXtor® support and maintenance plans:

• Basic: Email with up to 1 business day response
• Silver: Mon-Fri, 9-5, up to 4 hours response time
• Gold: 24/7/365
• Platinum: Gold level + assigned account support person
